Function:

*1. With fast and even heating, has been successfully tested for 8000 times.

*2. Built-in intelligent temperature control chip to achieve safe intelligent temperature control and 3 temperature settings adjustment.

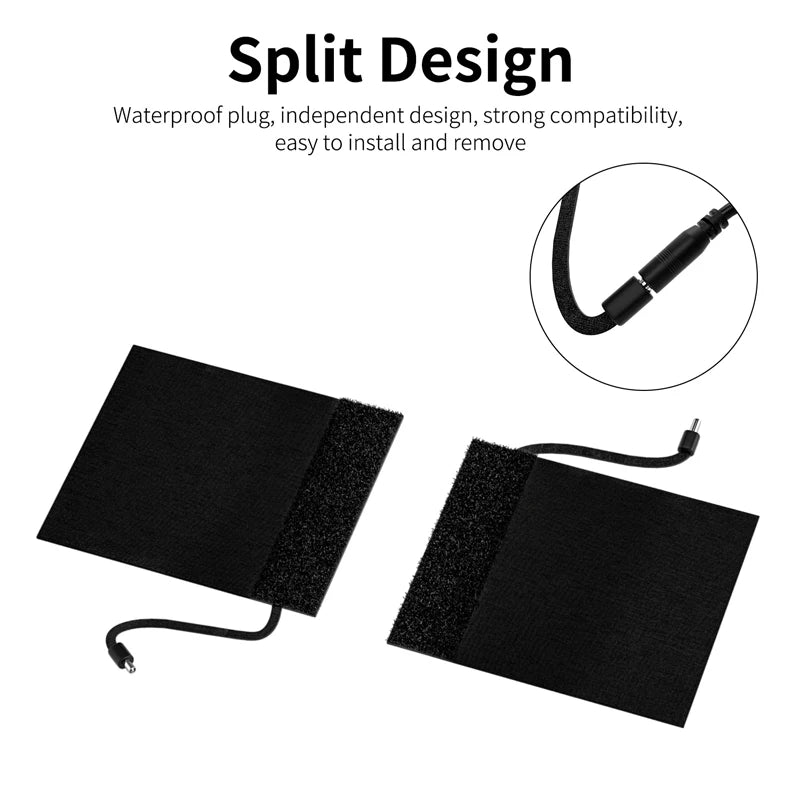

*3. Made of wear-resistant and durable fabric for long service life.

*4. The heating sheet is fixed by adhesive, which is conventional and fast.

*5. IP67 waterproof grade, even if the switch and handle are covered in soapy water, they can work normally. When the grip cover needs to be cleaned, unplug it and wash.

Description:

*1. Net/Gross Weight: 125g/150g

*2. Packing Size: 12.1x3.6x16.1cm

*3. Input Voltage: DC 12V

*4. Wire Length: 108cm (grip to switch), 146cm (switch to electric door lock)

*5. Ambient Temperature: -30℃ -+100℃

*6. Product Power: 15W(Low)-20W(Mid)-25W(High)

*7. Material: composite fiber heating wire, wear-resistant cloth, (L-shaped bracket) stainless steel

*8. Installation: adhesive, L-shaped bracket mirror seat fixed

*9. Wiring: Red-positive, Black-negative

Operating Instructions:

*1. Power on: the red light, the blue light and the green light flash once each, and then extend.

*2. Standby state: the red light flashes, and when the temperature reaches a certain temperature, it will automatically turn blue.

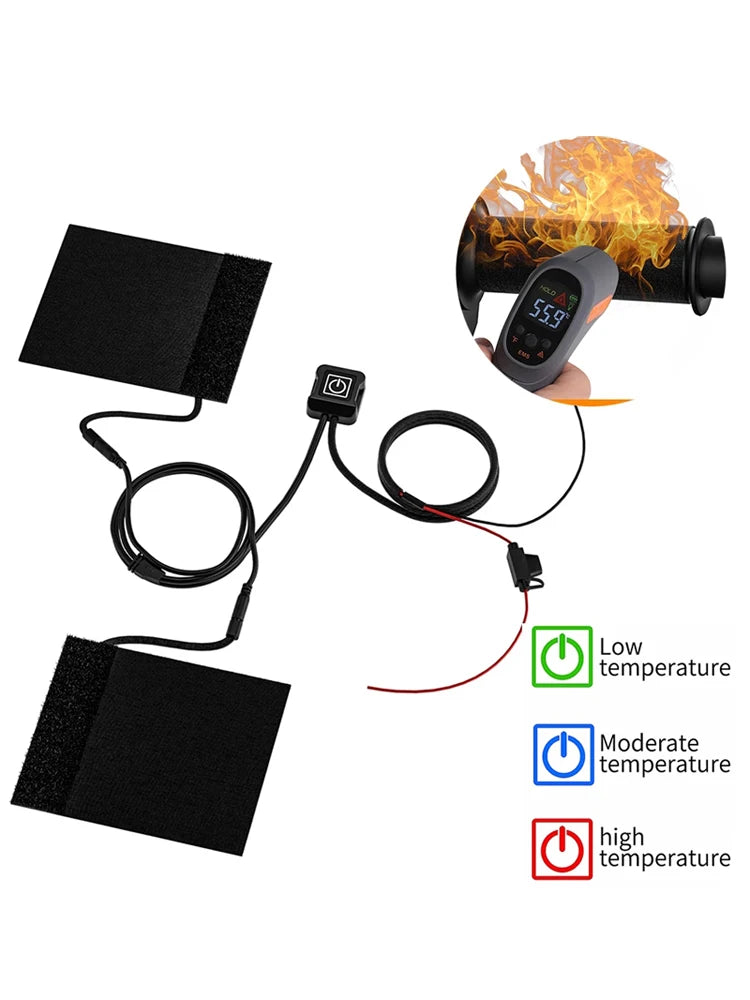

*3. Working state: the light is always on (High temp: red light is always on; Mid temp: blue light is always on; Low temp: green light is always on)

*4. Click key: switch gears

Attention:

*1. Please choose the appropriate heating gear according to the ambient temperature. When you can't accurately sense the temperature of the handle grip in time due to stiff hands, please start with the low or mid gear to prevent burns.

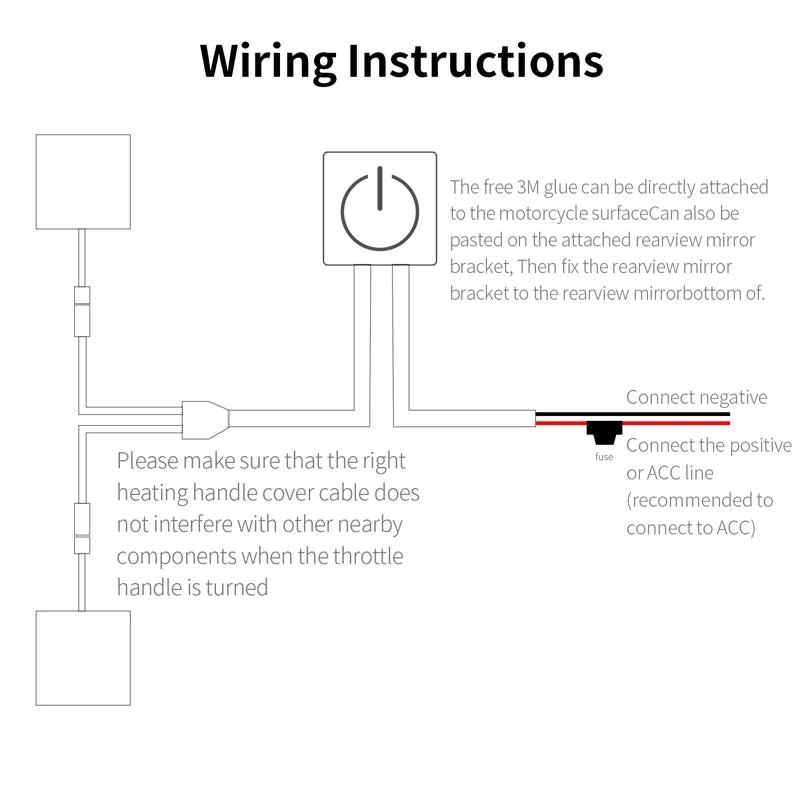

*2. Work on 12V batteries only. Please read the installation drawing carefully before installation, and incorrect wiring will lead to parts damage.

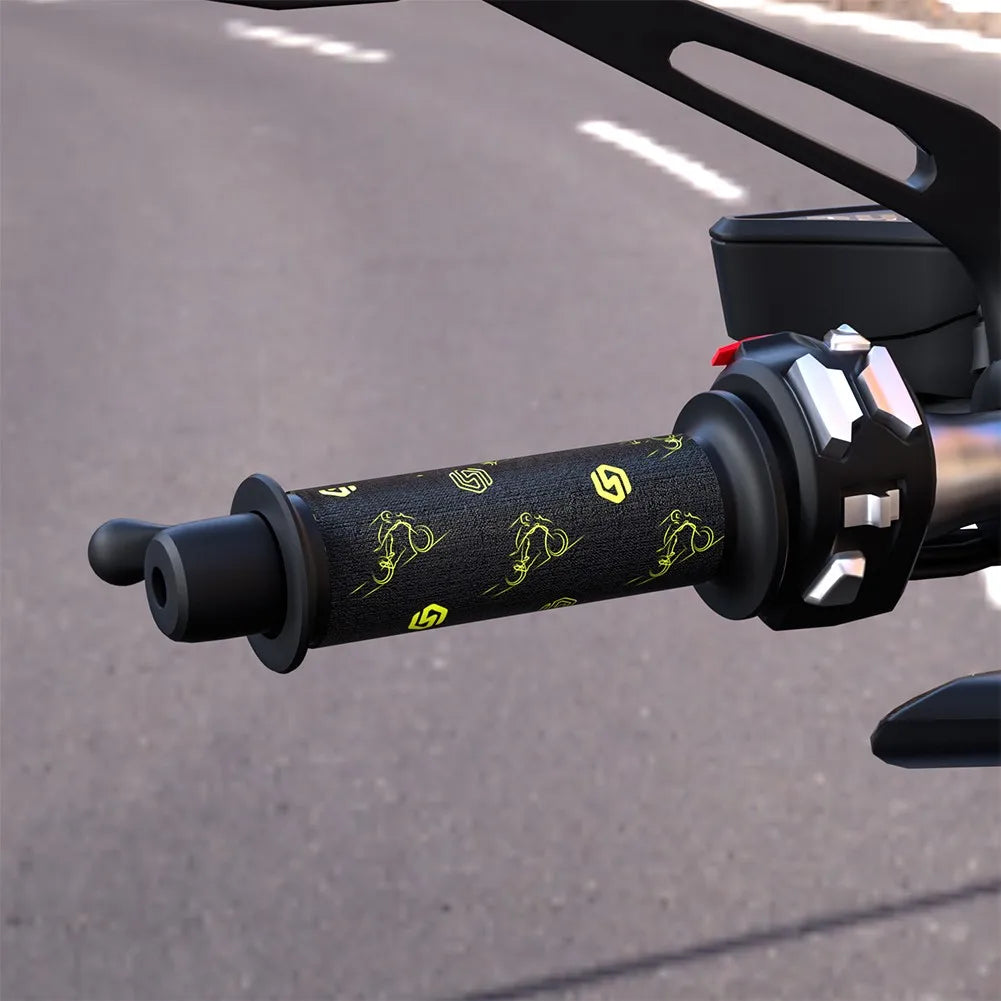

*3. This product can only be installed on the handlebars of motorcycles. You can test the electrification of the product with batteries before installation.

*4. It is strictly forbidden to idle when not riding, so as to prevent the original rider from being damaged due to the high temperature of the grip.

*5. It is recommended to connect the electric door lock wire for wiring. Most models are black positive electrode and green negative electrode. It is recommended to use a multiplier to measure the specific situation.

*6. If the positive and negative poles are connected reversely, the switch does not work, and the grip directly heats.

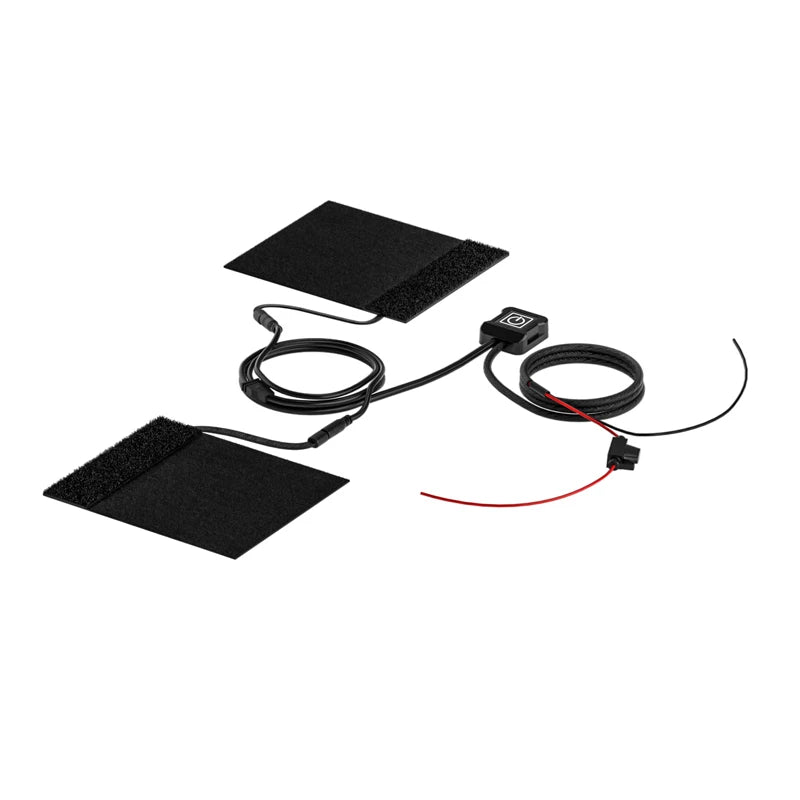

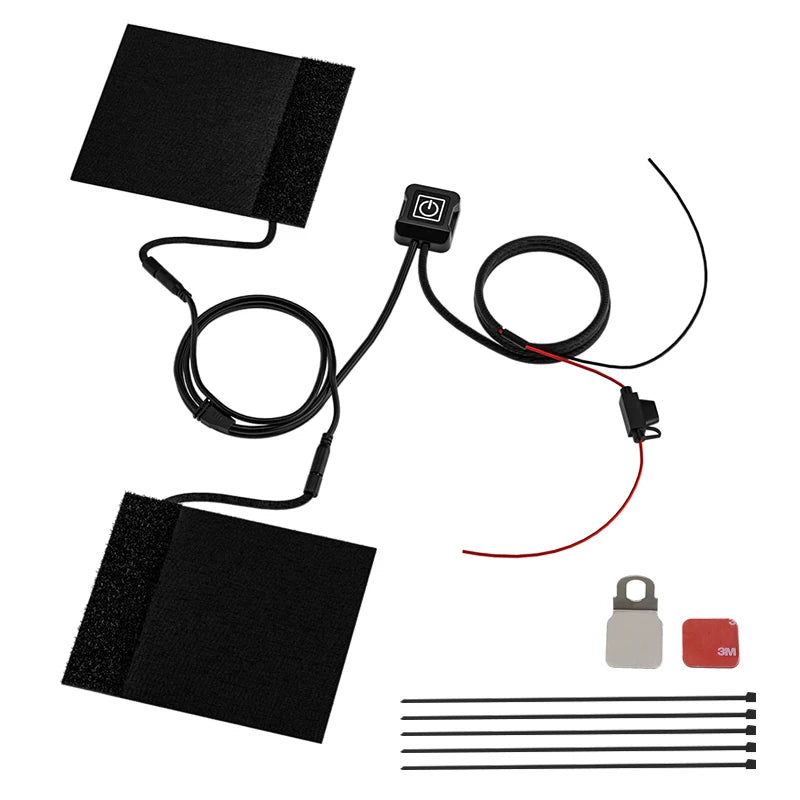

Package Includes:

2 x Heated Grip

5 x Tie

1 x L-shaped Stainless Steel Bracket

1 x Adaptive(3 meters)
